10 Kn Cable Conveyor Machine Dia 25mm-220mm Cable Pusher For Sale

Basic Information
Place of Origin: China
Brand Name: Net Electric Power
Certification: ISO45001 ISO14001
Document: Yutong Catalogue2019_8.pdf
Minimum Order Quantity: 1000
Price: 1000-3000usd/set
Packaging Details: carton,plywooden case,pallet
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T
Supply Ability: 1000pices/per
Detail Information
Highlight:

10 Kn Cable Conveyor machine

,

Dia 25mm Cable Conveyor

,

220mm Cable Pusher For Sale


Product Description

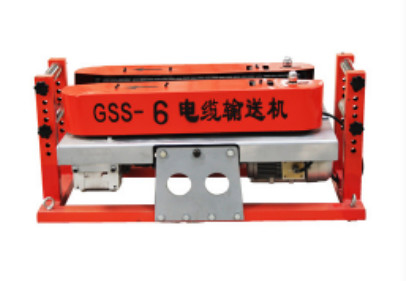

This machine is suitable for the city power grid transformation and new laying cable used,especially suitable for long distance cable cast, reduce labor intensity and improveengineering quality.The machine has the advantages of small volume, large thrust, easy on the engineeringconstruction of wells used, light weight.The machine can be single push, also can machine on, synchronization through a control
box to control multiple machines.
Conveying wheel forming rubber casting, will not damage the cable skin, also canaccording to the outer diameter size adjusting the center distance.

Model

BSD-6

Applicable cable diameter

25-220mm

Transmission speed

Common:8.5m/min,12.5m/min,20m/min

The speed can be adjusted according to the actual situation.

Power

1.5kw*2

Clamping force

2.7kn

Transmission force

10kn

Unit

Set

Dimensions

500*1080*500mm

Remarks

can be equipped with sub-control box/can be equipped with speed regulating electrical box
