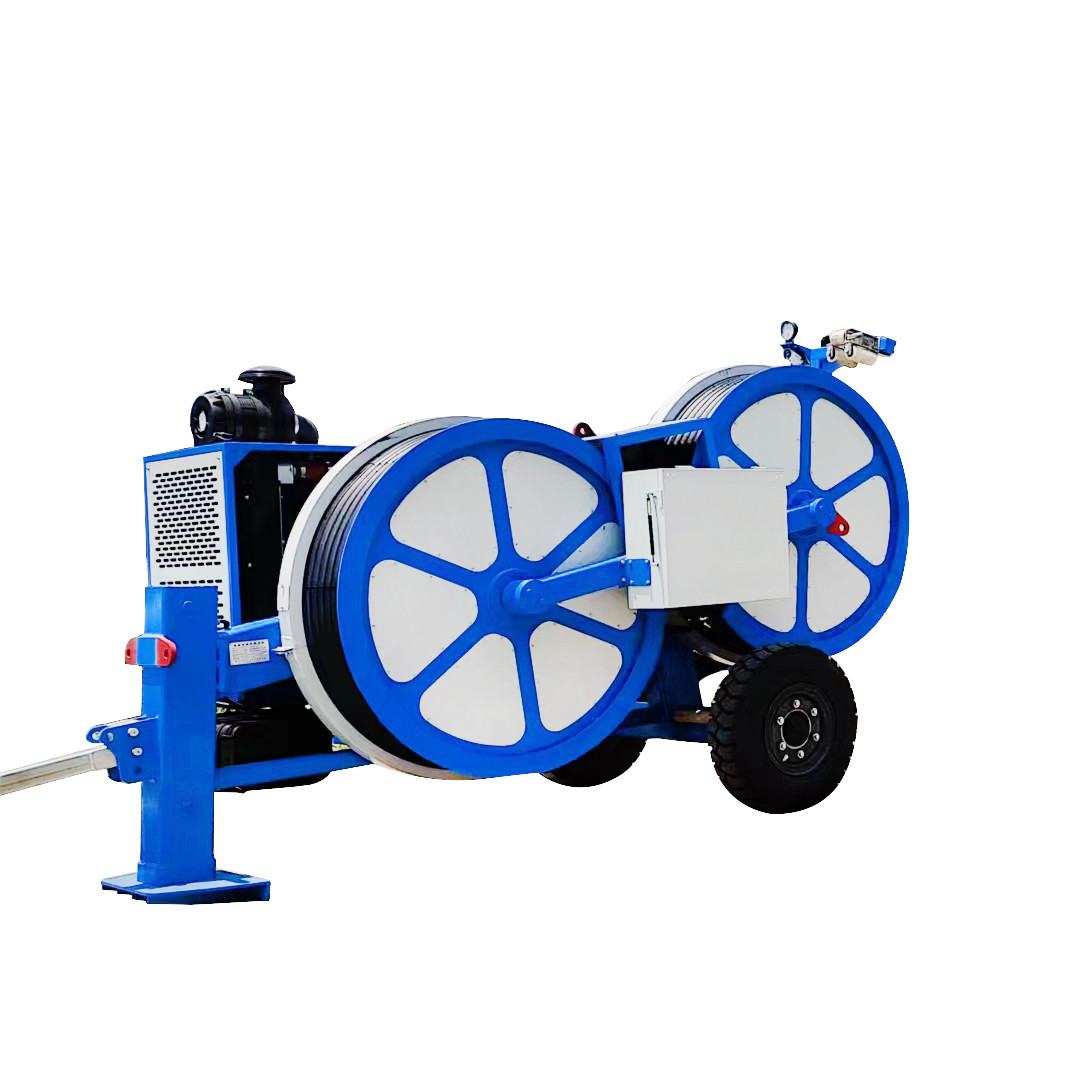

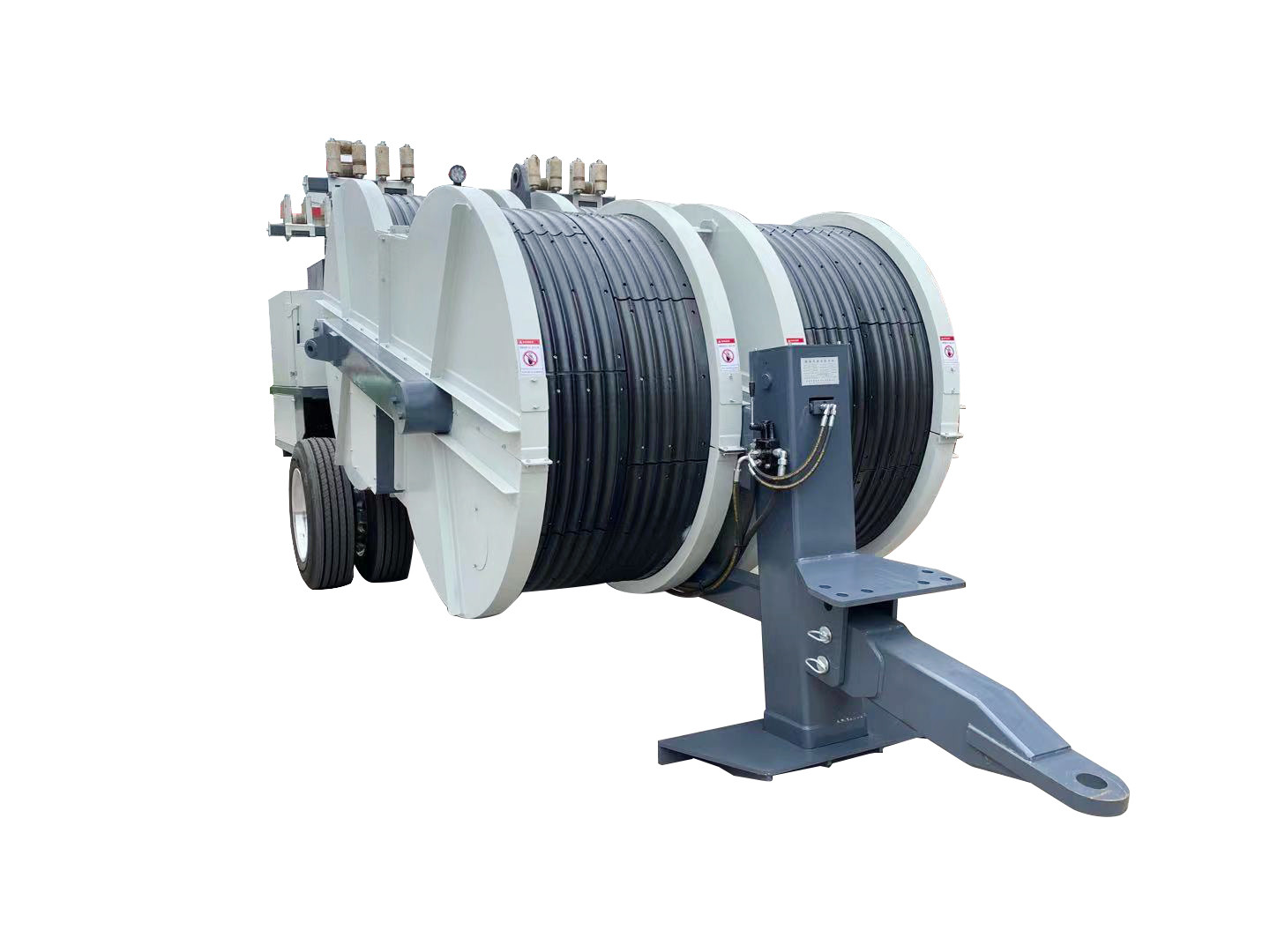

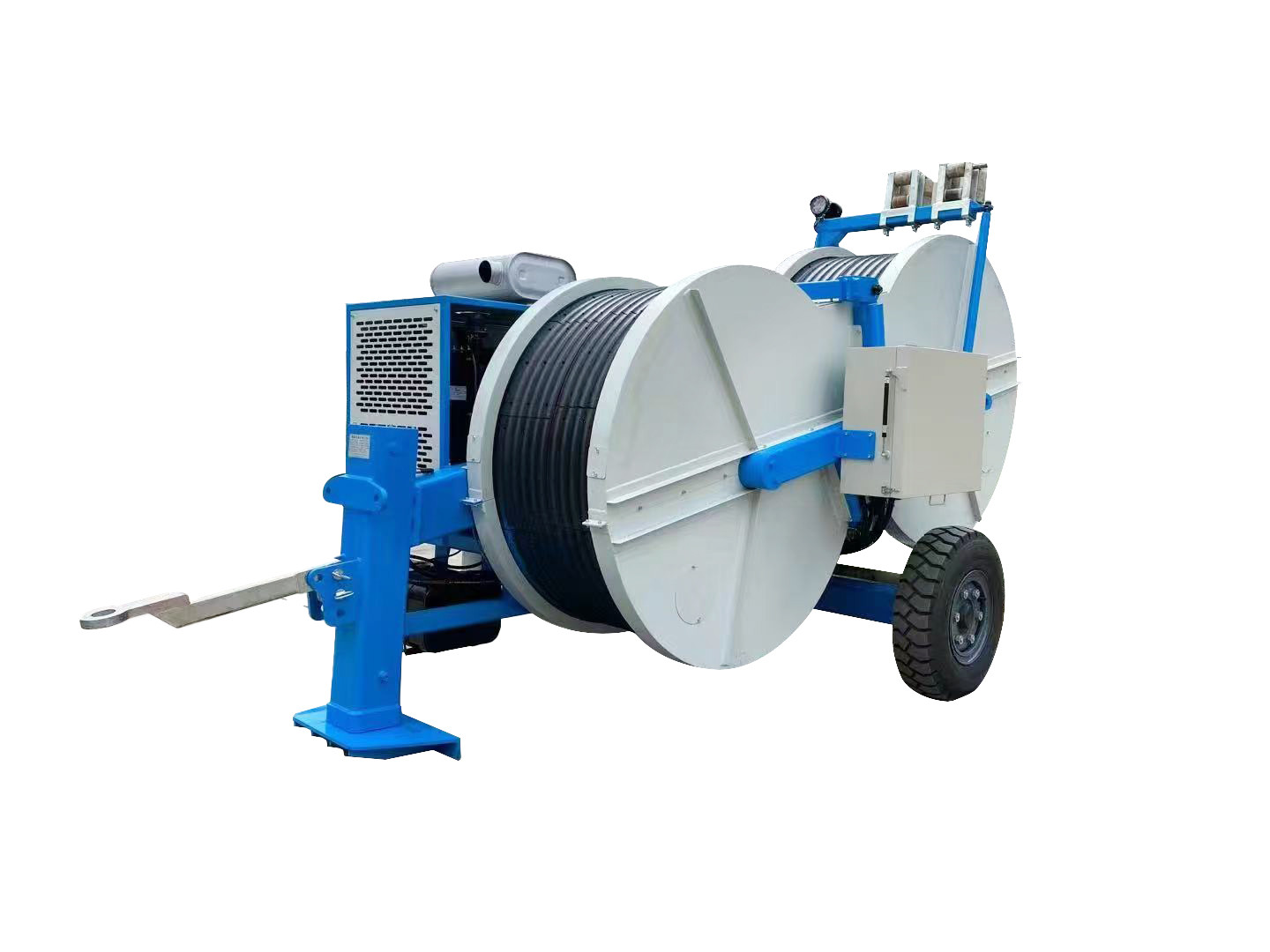

25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire

Product Details

Place of Origin: China

Brand Name: Net Electric Power

Certification: ISO45001 ISO14001

Document: Yutong Catalogue2019_7.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 10000-250000usd/set

Packaging Details: in bulk

Delivery Time: 5-8days

Payment Terms: L/C,T/T

Supply Ability: 10sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                30KN Hydraulic Wire Tensioner, 25KNHydraulic Wire Tensioner, Stringing Conductor  Hydraulic Tensioner


Product Description

hydraulic wire tensioner

Maximum Tension(KN): 30
Continuous Tension(KN):25
Maximum speed(kmyh): 5
Bullwheel bottom of groove diameter(mm):Ф1200
Number of grooves: 5
Maximum pullback(KN):20
Maximum suitable conductor diameter(mm): Ф32Engine power/speed(kw/rpm):11/2200
Dimensions(mm):3560x1600x2220
Weight(kg):1700
Uses: it' s used for stringing various conductors and earth wires, including OPGW, ADSS, etc.wFeature:
1.Bullwheel with wear proof MC nylon lining segments.
2.Infinitely variable tension control and constant tension conductor stringing .
3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.Main component:
1.Engine: Chinese famous water cooled diesel engine.
2.Main pump/motor :Chinese famous branded pump and motor.
3.Reducer: EUROPAIR(ltalian).
4.lf use Honda gasoline engine.

25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire 0
