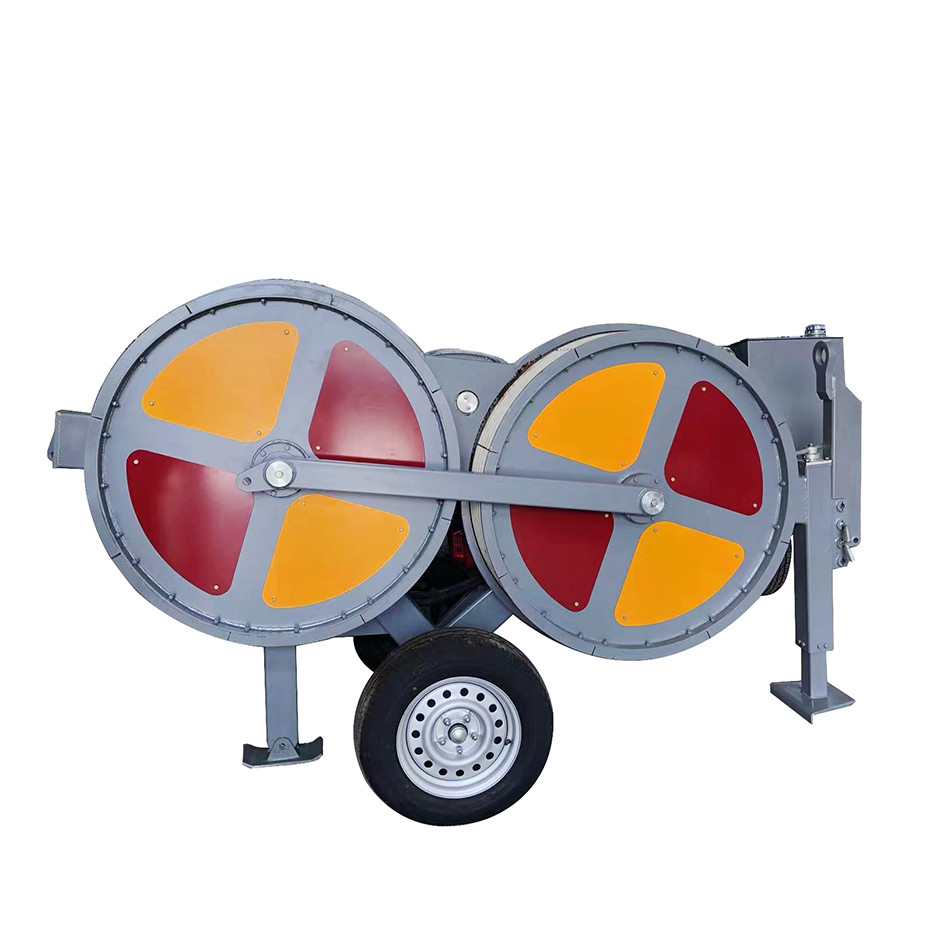

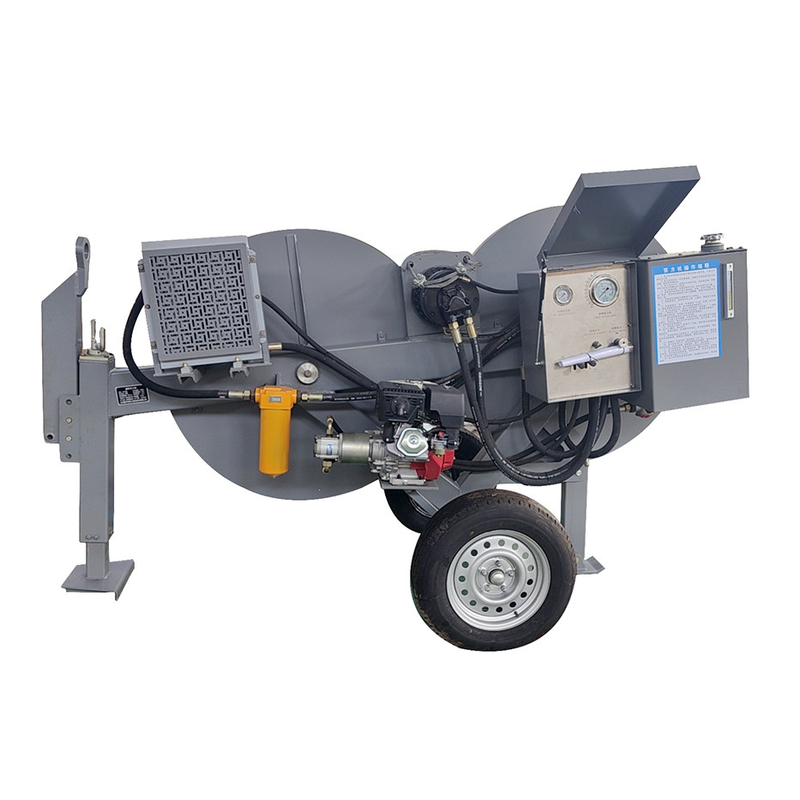

35KN 40KN Hydraulic Cable Tensioner Bullwheel With Wearproof MC Nylon Lining Segments

Maximum Tension(KN):40
Continuous Tension(KN):35
Maximum speed(km/h):5
Bullwheel bottom of groove diameter(mm):Number of grooves: 5
Maximum pullback(KN):40
Maximum speedback(km/h):2
Maximum suitable conductor diameter(mm):Engine power/speed(kw/rpm):37/2800
Dimensions(mm):3400x1800x2400
Weight(kg):2800
Uses: lt adequate to tension releasing various conductor and earthwires
Feature:
1.Bullwheel with wearproof MC nylon lining segments.
2.Infinitely variable tension control and constant tension conductor stringing.
3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.Main component
1.Engine:Cummines water-cooled engine.
2.Main pump/motor:Rexroth(BOSCH)
3.Reducer:RR(ltalian)
4.Hydraulic valve:Rexroth(BOSCH)
5.Radiator:AKG
6.Hydraulic instrument: WKA

Hot Sales Hydraulic Tensioner is mainly used to accurately control the tension of belts in various mechanical systems. In the automotive industry, various auxiliary equipment in the engine compartment, such as generators, water pumps, air conditioning compressors, etc., are driven by belts. The traditional manual adjustment of belt tensioning often makes it difficult to ensure constant tension. With the increase of time and mileage, the belt may become loose, causing problems such as slipping and abnormal noise, affecting the performance and reliability of the vehicle. Hot Sales Hydraulic Tensioner can continuously provide stable tension to ensure good contact between the belt and the pulley, improve transmission efficiency, and reduce the risk of failure.

In the field of industrial production, various conveyor belts and conveyor belt systems also widely use this hydraulic tensioner. It can adjust the tension in real time according to production needs and adapt to different working conditions. For example, in the logistics sorting system, the stable tension of the conveyor belt is crucial for accurate sorting of goods. With its high-precision tension control capability, Hot Sales hydraulic tensioner ensures the smooth operation of the conveyor belt system and improves production efficiency and product quality.
