Name: 45KN 56KN 72KN Small Gin Pole Lifting Device Gin Pole For Tower
Brand: Jiangsu Net Power Equipment Technology Co., Ltd.
Price: 550.00 USD
Availability: InStock

Detail Information

Highlight:

45KN Gin Pole For Tower

56KN Gin Pole Lifting Device

72KN Small Gin Pole

Product Description

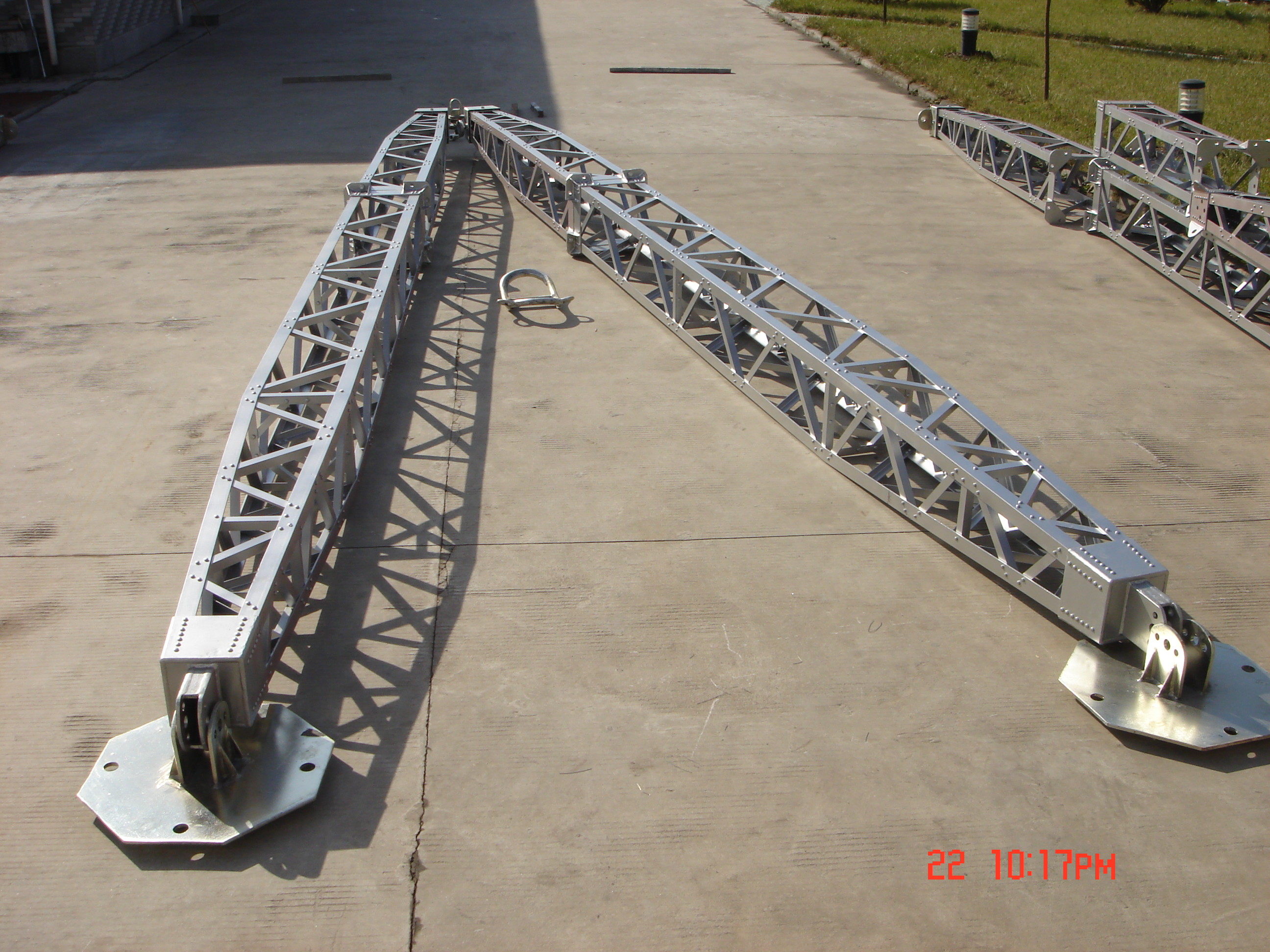

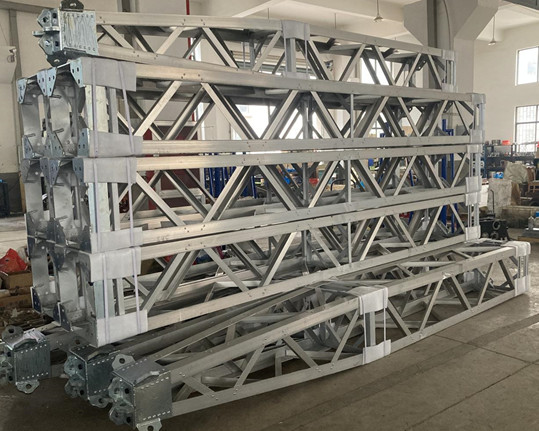

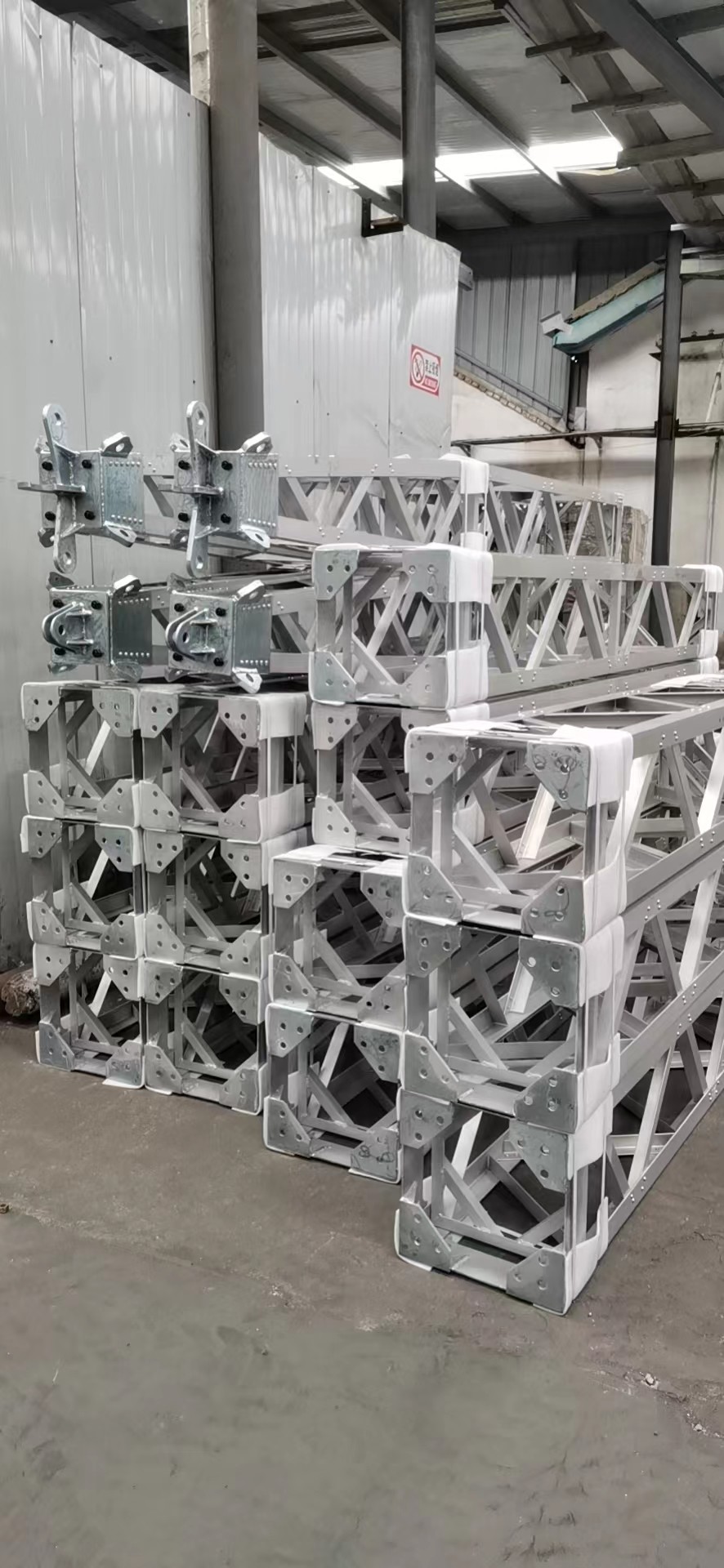

Aluminum alloy frame A-shape gin pole

For transmission tower erection construction of distribution lines, the stability safetycoefficient of 2.5. Pole head part is falling down type, fixed type, fall and fixed dual-purpose type, pleaseindicate.

Model	Root opening /allow vertical load	Weight
LBR250-8	2.8m72KN	10.5kg
LBR250-9	3.1m/56KN
LBR250-10	3.5m/45KN
LBR250-11	3.8m/38KN
LBR250-12	4.2m/32KN
LBR250-13	4.5m/27KN
LBR250-14	4.9m/22KN
LBR250-15	5.2m/20KN
LBR300-8	2.8m/100KN	11kg
LBR300-9	3.1m/87KN
LBR300-10	3.5m/70KN
LBR300-11	3.8m/56KN
LBR300-12	4.2m/47KN
LBR300-13	4.5m/40KN
LBR300-14	4.9m/35KN
LBR300-15	5.2m/31KN
LBR300-16	5.6m/26KN
LBR350-8	2.8m/120KN	13.5kg
LBR350-9	3.1m/105KN
LBR350-10	3.5m/94KN
LBR350-11	3.8m/78KN
LBR350-12	4.2m/65KN
LBR350-13	4.5m/58KN
LBR350-14	4.9m/46KN
LBR350-15	5.2m/42KN
LBR350-16	5.6m/37KN	16.5kg
LBR400-11	3.8m/147KN
LBR400-12	4.2m/129KN
LBR400-13	4.5m/113KN
LBR400-14	4.9m/98KN
LBR400-15	5.2m/86KN
LBR400-16	5.6m/75KN
LBR400-17	5.9m69KN
LBR400-18	6.3m/60KN	22kg
LBR500-13	4.5m/256KN
LBR500-14	4.9m/234KN
LBR500-15	5.2m/215KN
LBR500-16	5.6m/196KN
LBR500-17	5.9m/173KN
LBR500-18	6.3m/151KN
LBR500-19	6.6m/138KN
LBR500-20	6.9m/127KN
LBR600-15	5.2m/275KN	24kg
LBR600-16	5.6m/252KN
LBR600-17	5.9m/234KN
LBR600-18	6.3m/219KN
LBR600-19	6.6m/204KN
LBR600-20	6.9m/186KN
LBR600-21	7.3m/168KN
LBR600-22	7.6m/150KN

45KN 56KN 72KN Small Gin Pole Lifting Device Gin Pole For Tower 0

Tag:

Place of Origin:	China
Brand Name:	Net Electric Power
Certification:	ISO45001 ISO14001

Minimum Order Quantity:	100
Price:	100-1000usd/m
Packaging Details:	carton,plywooden case,pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	1000pices/per
