Product Details
Place of Origin: China
Brand Name: Net Electric Power
Certification: ISO45001 ISO14001
Document: Yutong Catalogue2019_20.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000
Packaging Details: carton,plywooden case,pallet
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T
Supply Ability: 1000pices/per

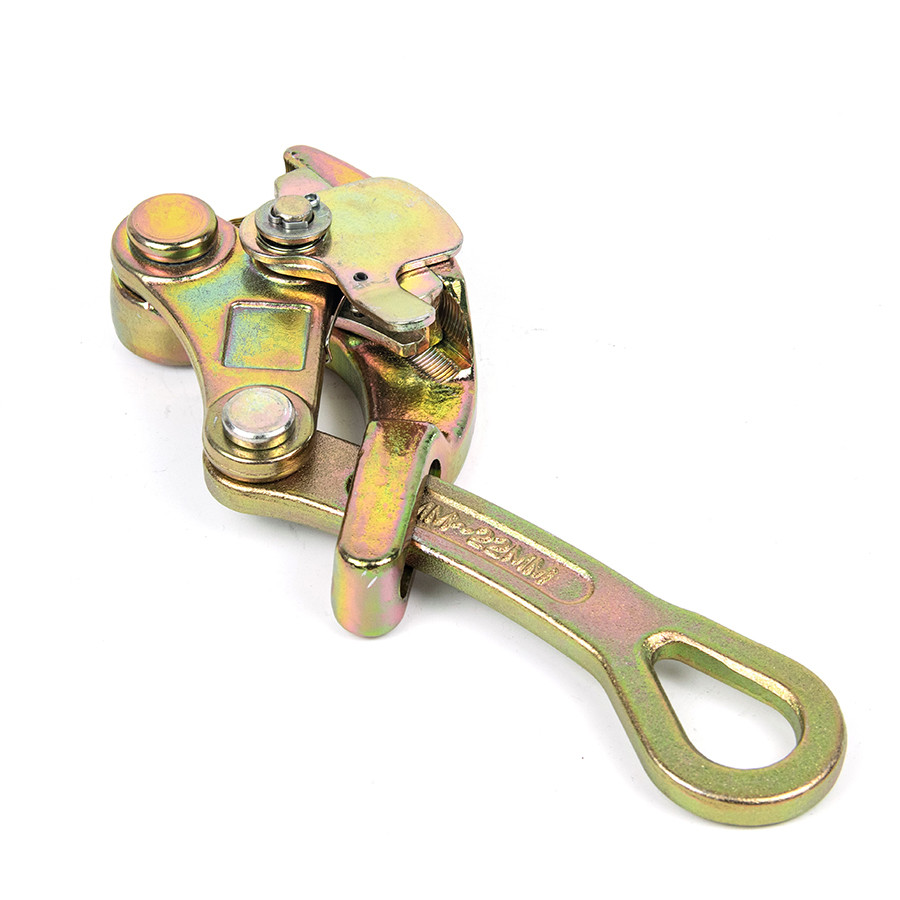

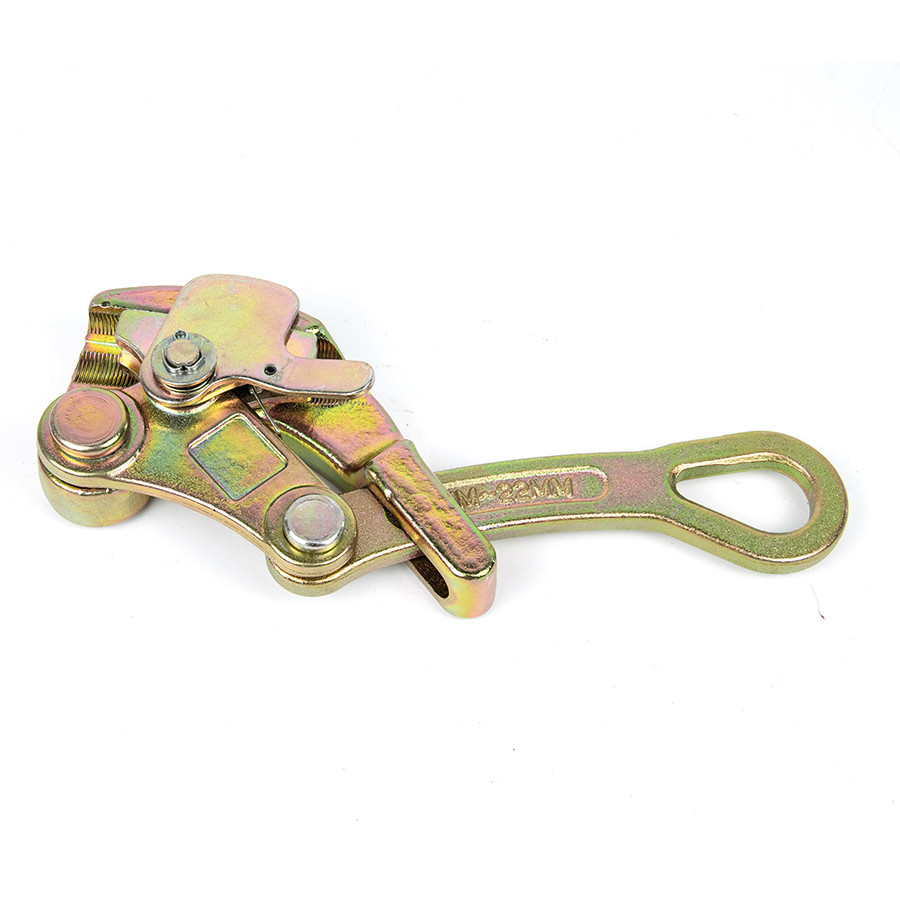

Wire grip
In construction engineering, when laying wires and cables in complex building structures, wire grip is like a loyal guard. It tightly clamps the wires and cables to ensure that they will not shift during the laying process in the building. For example, in high-rise residential buildings, bundles of wires need to be led from the distribution box to each room. The wire grip can neatly fix them in the wire troughs on the wall or ceiling to prevent the wires from being scattered due to slight shaking of the building or collisions with people walking, thereby avoiding possible safety hazards such as line short circuits.
In the power system, the importance of wire grip is even more significant. Whether it is a high-voltage transmission line or a line connection in a substation, a wire grip is needed to stabilize the wires. On the transmission line, it can withstand the influence of bad weather such as wind, sun, lightning and thunder, ensure the stability of the position of the wires, and enable the strong current to be safely and stably transmitted to distant places. In the substation, many lines are densely intertwined, and the wire grip allows each line to perform its duties and accurately realize the conversion and distribution of electric energy.
In the field of industrial equipment, wire grip is also indispensable for the line connection of various precision instruments and equipment. It can adapt to wires of different specifications and provide just the right clamping force, which not only ensures the stability of the line, but also prevents the core wire inside the wire from being damaged due to excessive clamping force. In short, wire grip has made great contributions to ensuring the safety and stability of the line with its reliable performance.
Product code | Model | Applicable stranded steelwire | Rated load | Weight |
0143 | TDK-1 | 2.5-16mm | 10KN | 0.73kg |
0144 | TDK-2 | 4~22mm | 20KN | 1.36kg |
0145 | TDK-3 | 16-32mm | 30KN | 2.47kg |
0146 | HGK-1 | 2.5-16mm | 10KN | 0.8kg |
0147 | HGK-2 | 4-22mm | 20KN | 1.6kg |
0148 | HGK-3 | 16-32mm | 30KN | 2.5kg |
0149 | NGK-1 | 2.5-16mm | 10KN | 0.8kg |
0150 | NGK-2 | 4-22mm | 20KN | 1.6kg |
0151 | NGK-3 | 16~32mm | 30KN | 2.5kg |
