800kg 1600kg Wire Rope Winch Tirfor Hand Wrenching Tackle Block Tirfor Griphoist

Product Details

Place of Origin: China

Brand Name: Net Electric Power

Certification: ISO45001 ISO14001

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 100-1200usd/pc

Packaging Details: carton,plywooden case,pallet

Delivery Time: 5-8 work days

Payment Terms: L/C,T/T

Supply Ability: 10000pices/per

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                Wire Rope Winch Tirfor, Hand Wrenching Tackle Block, 800kg Tirfor Griphoist


Product Description

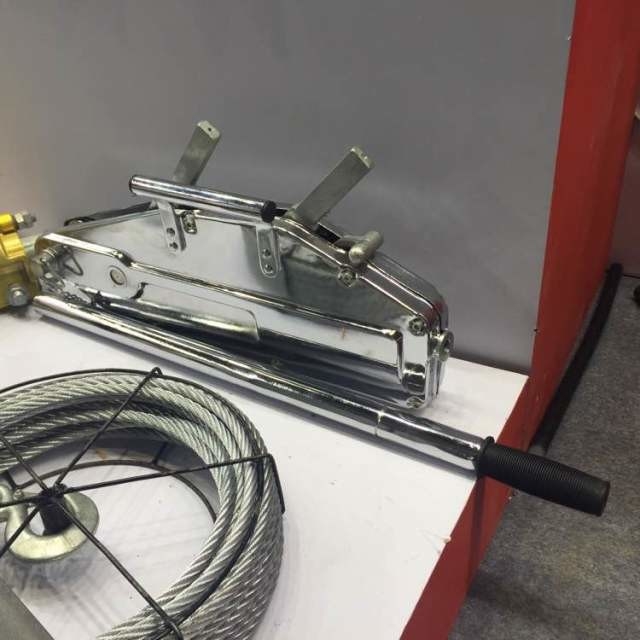

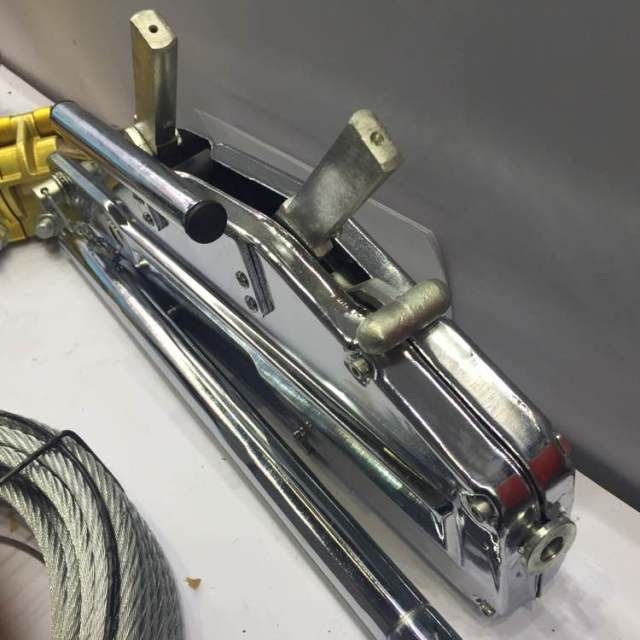

Wire Rope Hand Wrenching Tackle Block (Tirfor)

Tirfor's main uses are wide-ranging and practical. In the field of construction, it is an indispensable helper. For example, when building scaffolding, various pipes and scaffolding components need to be hoisted to the designated location. Tirfor can easily achieve vertical lifting of heavy objects through its tough wire rope and ingenious pulley system, greatly improving construction efficiency and reducing manpower consumption. Moreover, due to its relatively simple operation, even workers who have not received highly professional training can use it correctly under certain guidance, ensuring the smooth progress of the construction process.

Tirfor also performs well in the installation and maintenance of industrial equipment. When large mechanical equipment needs to be disassembled or installed, it often involves moving heavy components between different heights and positions. Tirfor can provide stable and reliable traction to safely lift or pull components to the appropriate location, avoiding unnecessary collisions and damage to the equipment. For example, when overhauling a generator, it is necessary to lift the huge turbine generator rotor out or put it back into the stator. Tirfor can ensure the safety of this complex process with its strong load-bearing capacity and precise operation control.

Model		LJ-800	LJ-1600	LJ-3200	LJ-5400
Rated capacity(kg)		800	1600	3200	5400
Rated forward handpower(N)		341	400	438	550
Rated forward travel(mm) (Swing it front and backward)		≥52	≥55	≥28	≥25
Rope diameter(mm)		8.3	11	16	20
Wire rope safety factoer load capacity		5	5	5	5
Safety factor&static load capacity		4	4	4	4
Max travelling load(kg)		1200	2400	4000	8100
Net weight		6.4	12	23	58
Max Overall Size	A	426	545	660	930
	B	238	284	325	390
	C	64	97	116	150
L1(cm)			692	692	692
L2(cm)			1200	1200	1200
L3(cm)		800

800kg 1600kg Wire Rope Winch Tirfor Hand Wrenching Tackle Block Tirfor Griphoist 0
