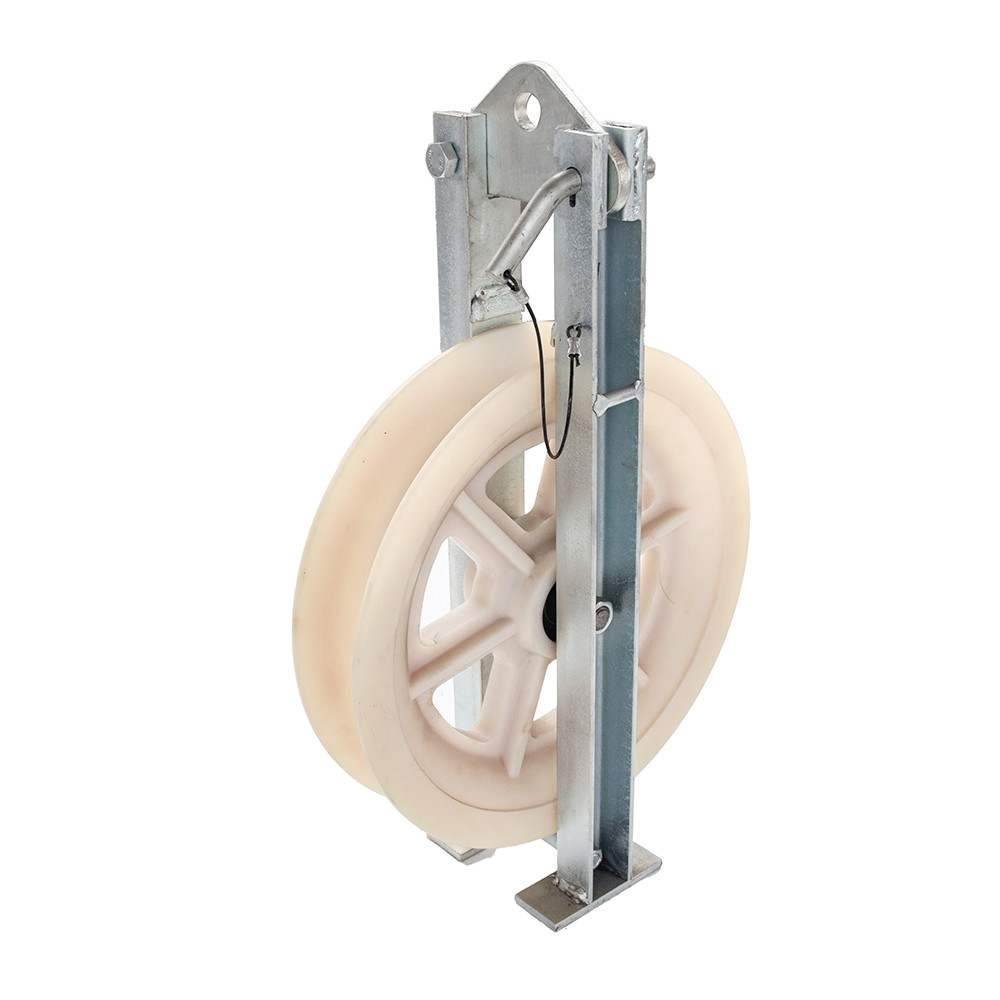

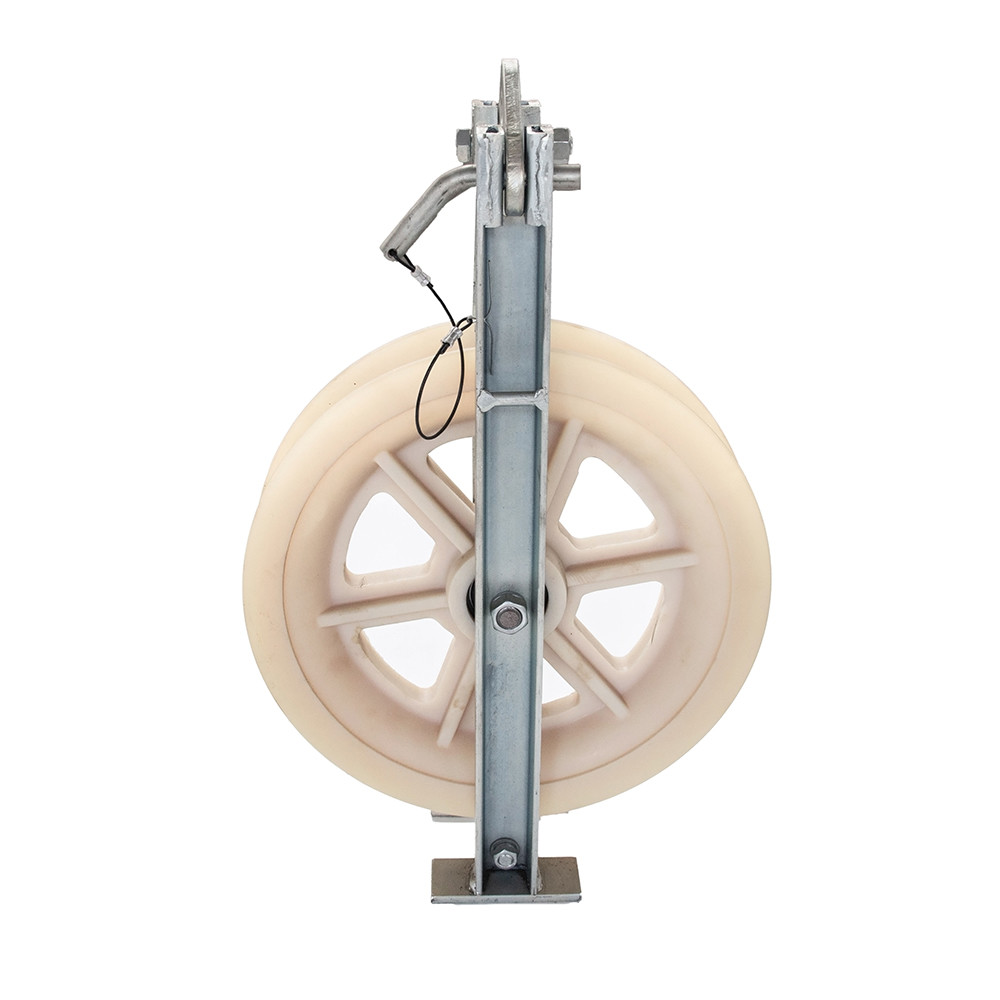

5KN 10KN 15KN 20KN Conductor Stringing Blocks For Aluminum Wire

conductor stringing blocks

•  To put aluminum wire, steel core aluminum siranded wire, insulated wire delay in poleand tower.Wheel groowe can be through a clamp pipe, aluminum casing, conneclor etc.The material is divided into aluminum alloy and MC nyon two.EPulley pendant divided into joint plate and hook type.

  Product code	Model	Application of wire	Rated load	Weight	Remarkcs
  0270	FH-120 x 30L	LGJ25-70	5KN	2kg	Aluminum Wheel
  0271	FH-160 x 40L	LGJ95-120	10KN	3.2Kg
  0272	FH-200 x 40L	LGJ150-240	15KN	4kg
  0273	FH-200 x 60L	LGJ150-240	15KN	4.6Kg
  0274	FH-220 x 50L	LGJ150-240	15KN	4.6Kg
  0275	FH-250 x 60L	LGJ300-400	20KN	6kg
  0276	FH-320 x 60L	LGJ300-400	20KN	9.5kg
  0277	FH-400 x 80L	LGJ400-500	20KN	15kg
  0278	FH-120 x 30N	LGJ25-70	5KN	1.5Kg	Nylon Wheel
  0279	FH-160 x 40N	LGJ95-120	10KN	2.5kg
  0280	FH-200 x 40N	LGJ150-240	15KN	3.6kg
  0281	FH-200 x 60N	LGJ150-240	15KN	4kg
  0282	FH-220 x 50N	LGJ150-240	20KN	4kg
  0283	FH-250 x 60N	LGJ300-400	20KN	4.5kg
  0284	FH-270 x 60N	LGJ300-400	20KN	5.6kg
  0285	FH-320 x 60N	LGJ300-400	20KN	6.7kg
  0286	FH-400 x 80N	LGJ300-500	20KN	13kg

•
