Name: Large Diameter Conductor Pulley Block 20KN 40KN 60KN Rated Load
Brand: Jiangsu Net Power Equipment Technology Co., Ltd.
Price: 406.00 USD
Availability: InStock

Detail Information

Highlight:

conductor universal stringing block

20kn universal stringing block

20kn conductor stringing blocks

Product Description

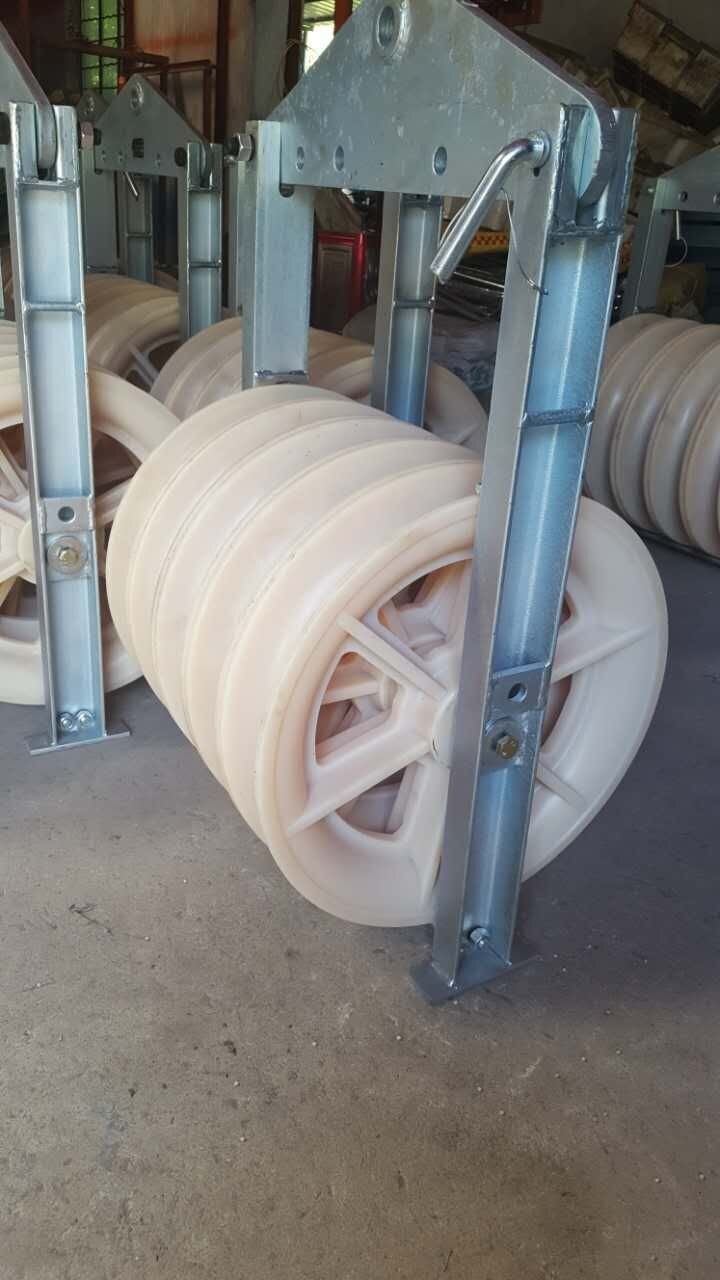

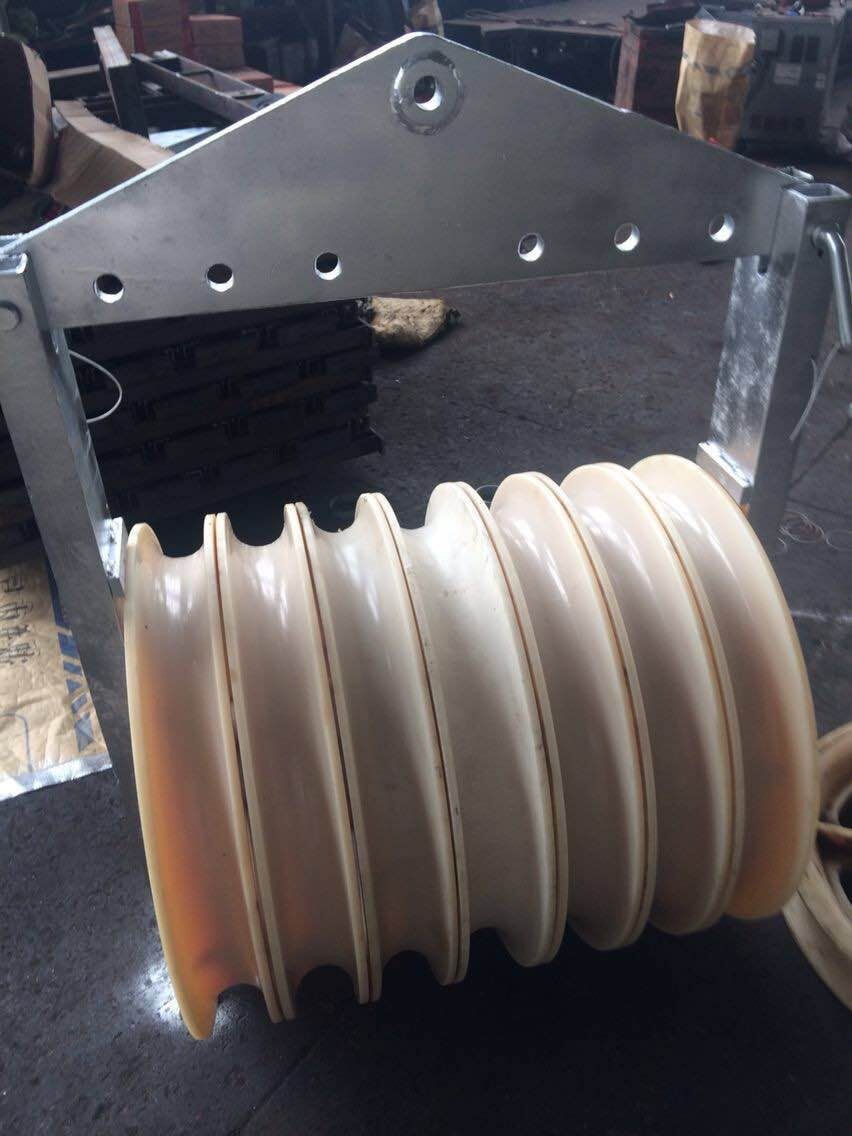

Large diameter conductor pulley block

It is used for display single conductor, double split conductor, four split conductor, and six split conductor.

Product code	Model	Number of rounds	Rated load	weight	Pulley characteristics
0239	FH1-508x75L	Single wheel	20KN	25	Adhesive aluminum wheel
0240	FH3-508x75L	Round	40KN	58	Intermedlate: cast steel wheel
0241	FH5-50Bx75L	Five round	60KN	88	Conduclor adhesive aluminum wheel
0242	FH1-50Bx75N	Single wheel	20KN	16.5	MC nylon wheel
0243	FH3-508x75N	Round	40KN	38.5	Intermediate: MC nylon wheel
0244	FH5-50Bx75N	Five round	60KN	55.5	Conduclor: adhesive aluminum wheel
0245	FH1-660x100L	Single wheel	20KN	45	Adhesive aluminum wheel
0246	FH3-660x100L	Round	40KN	113	Intermediate: cast steel wheel width 90
0247	FH5-660x100L	Five round	60KN	152	Conductor: adhesive aluminum wheel
0248	FH1-660x100N	Single wheel	20KN	32.6	MC nylon wheel
0249	FH3-660x100N	Round	40KN	78	Intermediate: MC nylon wheel
0250	FH5-660x100N	Five round	60KN	120	Conductor: adhesive aluminum wheel
0251	FHT-660x100L	Seven round	80KN	268	Intermediate: cast steel wheel Conductor: adhesive aluminum wheel
0252	FHT-600x100N	Seven round	75KN	190	Intermediate: cast steel wheel Conductor: Mc nylon wheel
0253	FH1-822N	Single wheel	30KN	56	MC nylon wheel
0254	FH3-822N	Round	60KN	118	MC nylon wheel
0255	FH5-822N	Five round	120KN	180	MC nylon wheel
0256	FHT-822N	Seven round	120KN	285	Intermediate: cast steel wheel Conductor: MC nylon wheel
0257	FHP-822N	Nine round	150KN	445	Intermediate: cast steel wheel Conductor: MC nylon wheel
0258	FH1-916N	Single wheel	50KN	45	MC nylon wheel
0259	FH3-916N	Round	80KN	140	MC nylon wheel
0260	FH5-916N	Five round	150KN	235	MC nylon wheel

Place of Origin:	China
Brand Name:	Net Electric Power
Certification:	ISO45001 ISO14001

Minimum Order Quantity:	1000
Price:	12-800usd
Packaging Details:	carton,plywooden case,pallet
Delivery Time:	5-8days
Payment Terms:	T/T,L/C
Supply Ability:	10000pices/per
