Seat Hook Type Stringing Pulley Block 5KN 20KN Aluminum Alloy MC Nylonwheel

Basic Information

Place of Origin:	China
Brand Name:	Net Electric Power
Certification:	ISO45001 ISO14001
Document:	Yutong Catalogue2019_24.pdf

Minimum Order Quantity:	1000
Price:	12-800usd
Packaging Details:	carton,plywooden case,pallet
Delivery Time:	5-8days
Payment Terms:	T/T,L/C
Supply Ability:	10000pices/per

Get Best Price Contact Now

Detail Information

Highlight:

Seat Hook Type Stringing Pulley

Stringing Pulley Block

5KN Stringing Pulley

Product Description

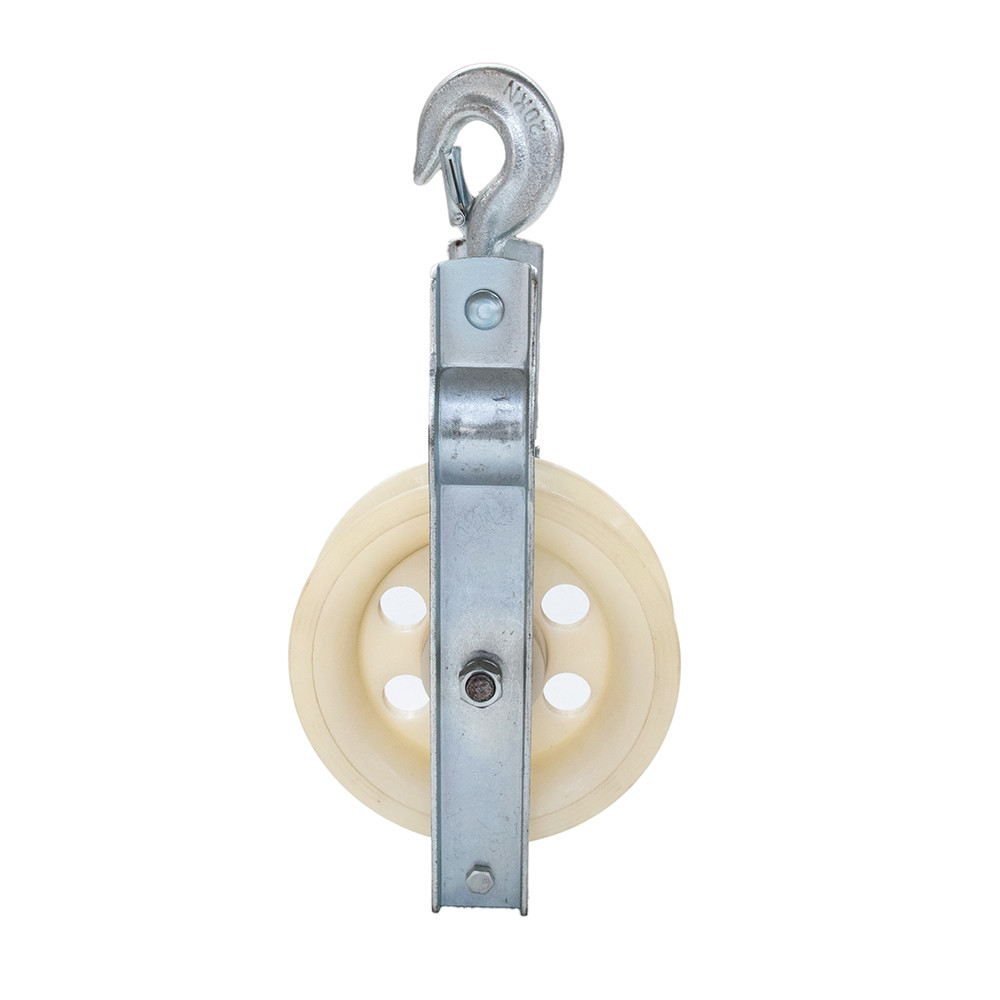

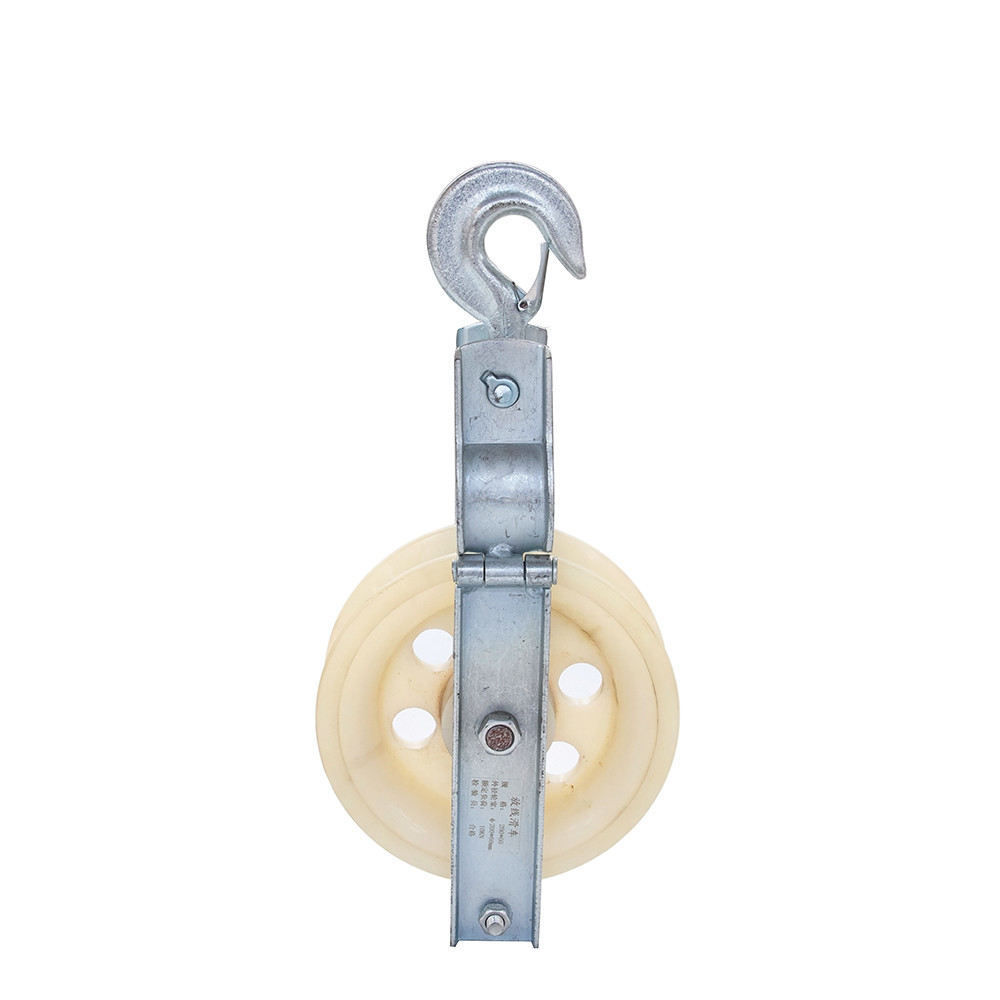

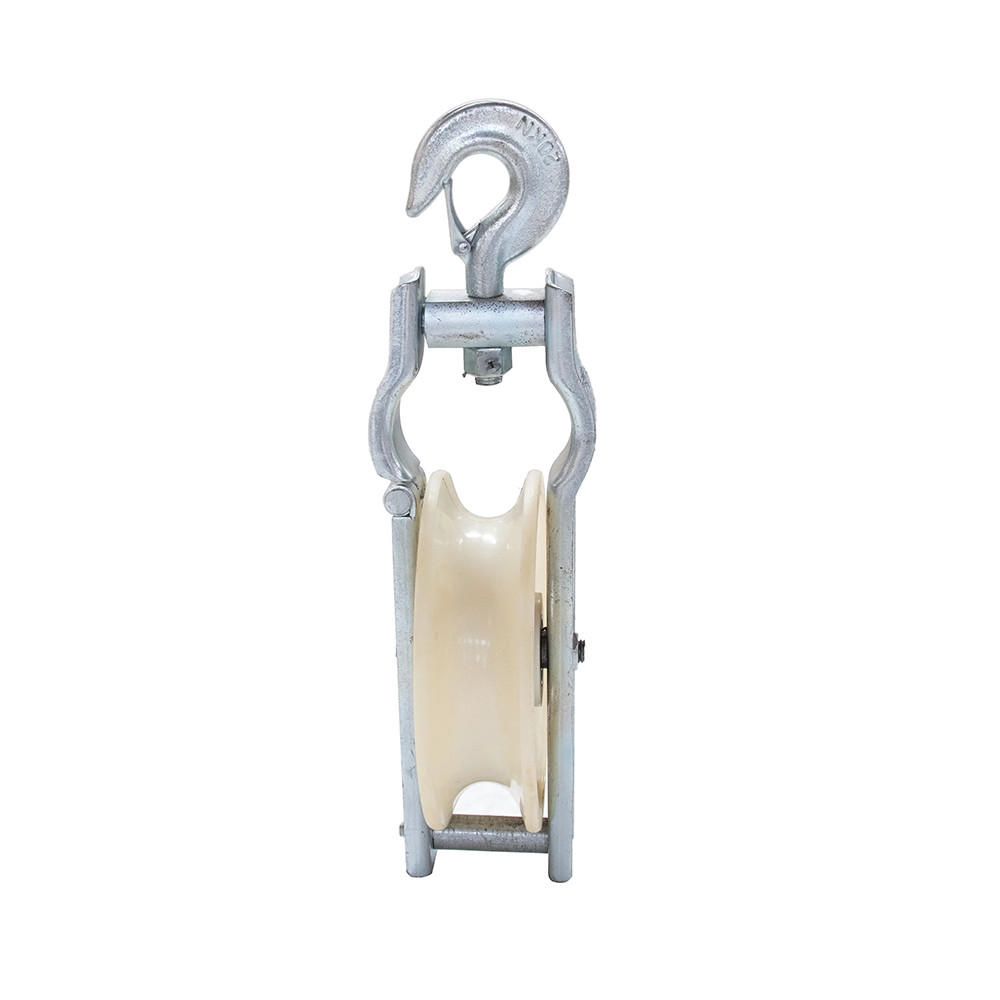

Seat-hook type stringing pulley block

For the ground wire show small area, can be used as a hook, but also can be used asair type to use, according to the material is divided into aluminum alloy and the MC nylonwheel.

Product code	Model	Outer diameter/wheel width	Rated load	Weight	Remarks
0291	SHC-0.5A	ф 80x50mm	5KN	1.9kg	Aluminum wheel
0292	SHC-0.5B	ф 80x50mm	5KN	2.1kg	Nylon wheel
0293	SHC-2A	ф120x60mm	20KN	2.5kg	Aluminum wheel
0294	SHC-2B	ф120x60mm	20KN	3.5kg	Nylon wheel
