30KN 50KN 80KN Winch Pulley Block Aluminium Alloy Lifting Pulley

Product Details

Place of Origin: China

Brand Name: Net Electric Power

Certification: ISO45001 ISO14001

Document: Yutong Catalogue2019_28.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 12-800usd

Packaging Details: carton,plywooden case,pallet

Delivery Time: 5-8days

Payment Terms: L/C,T/T

Supply Ability: 1000pices/per

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                80KN Winch Pulley Block, 30KN Winch Pulley Block, Aluminium Alloy Lifting Pulley


Product Description

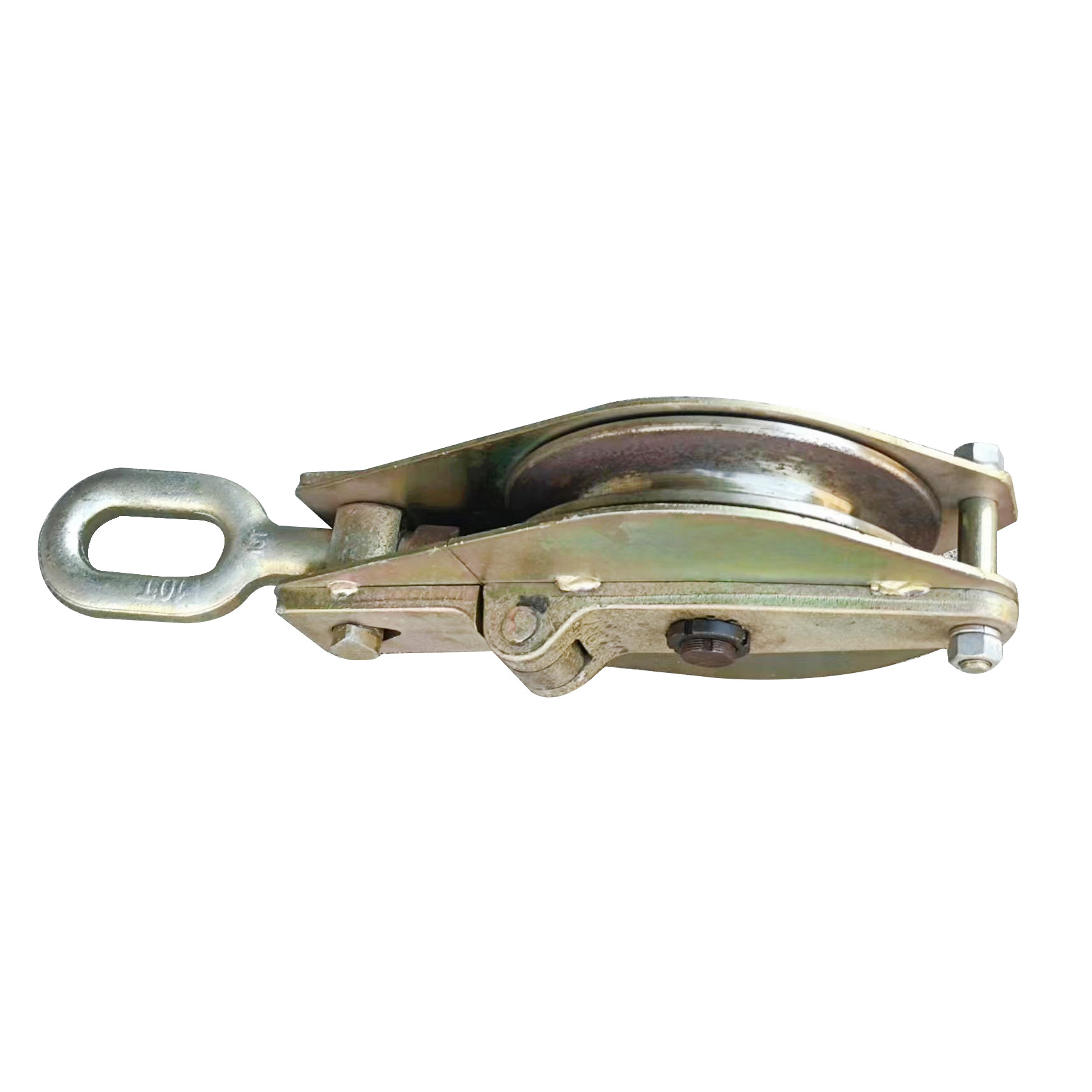

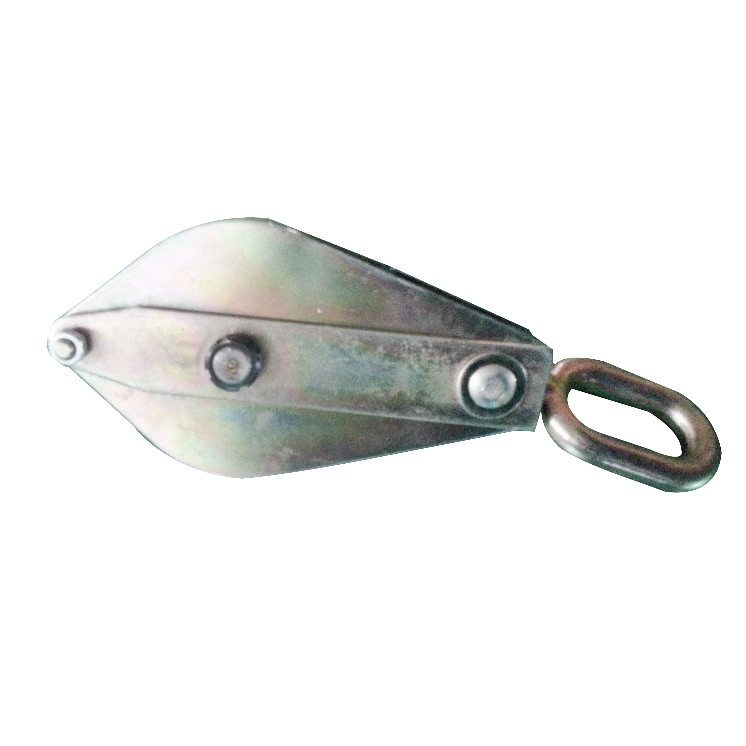

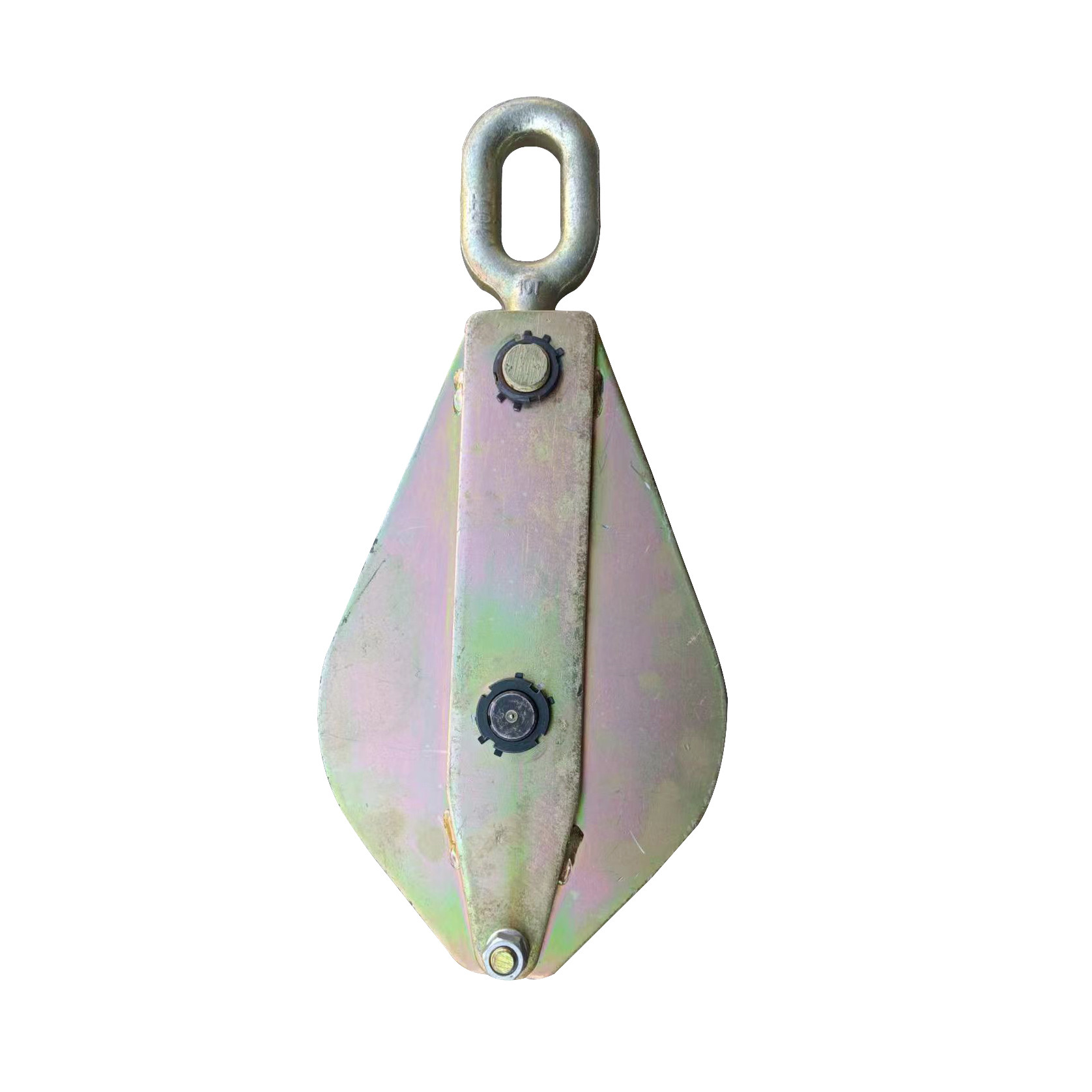

Aluminium alloy lifting pulley

With the use of lifting, can be used as a pulley group, also can be used in single.
Single wheel is an opening hook type, two wheels or three wheels is a closed ring type.
The use of aluminum alloy manufacture, light weight.

Product code	Model	Rated load	Number rounds	Application of wire rope diameter	Weight
0376	LZH5-1K	5KN	1	5.7mm	1.2kg
0377	LZH10-1K	10KN	1	7.7mm	1.5kg
0378	LZH10-2	10KN	2	5.7mm	1.75kg
0379	LZH10-3	10KN	3	5.7mm	2kg
0380	LZH15-2	15KN	2	7.7mm	2kg
0381	LZH15-3	15KN	3	12.5mm	2.75kg
0382	LZH20-1K	20KN	1	11mm	2kg
0383	LZH20-2	20KN	2	7.7mm	2.5kg
0384	LZH20-3	20KN	3	7.7mm	2.75kg
0385	LZH30-1K	30KN	1	12.5mm	3.5kg
0386	LZH30-2	30KN	2	11mm	4kg
0387	LZH30-3	30KN	3	7.7mm	4.2kg
0388	LZH50-1K	50KN	1	15.5mm	4kg
0389	LZH50-2	50KN	2	12.5mm	4.5kg
0390	LZH50-3	50KN	3	11mm	4.75kg
0391	LZH80-1K	80KN	1	18.5mm	6kg
0392	LZH80-2	80KN	2	15.5mm	6.5kg
0393	LZH80-3	80KN	3	15.5mm	6.75kg
