Iron Hoisting Tackle 5KN 10KN 15KN Lifting Block And Tackle

Product Details

Place of Origin: China

Brand Name: Net Electric Power

Certification: ISO45001 ISO14001

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 12-800usd

Packaging Details: carton,plywooden case,pallet

Delivery Time: 5-8 work days

Payment Terms: L/C,T/T

Supply Ability: 1000pices/per

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                Iron Hoisting Tackle 5KN, 15KN Lifting Block And Tackle, Iron Hoisting Tackle 10KN


Product Description

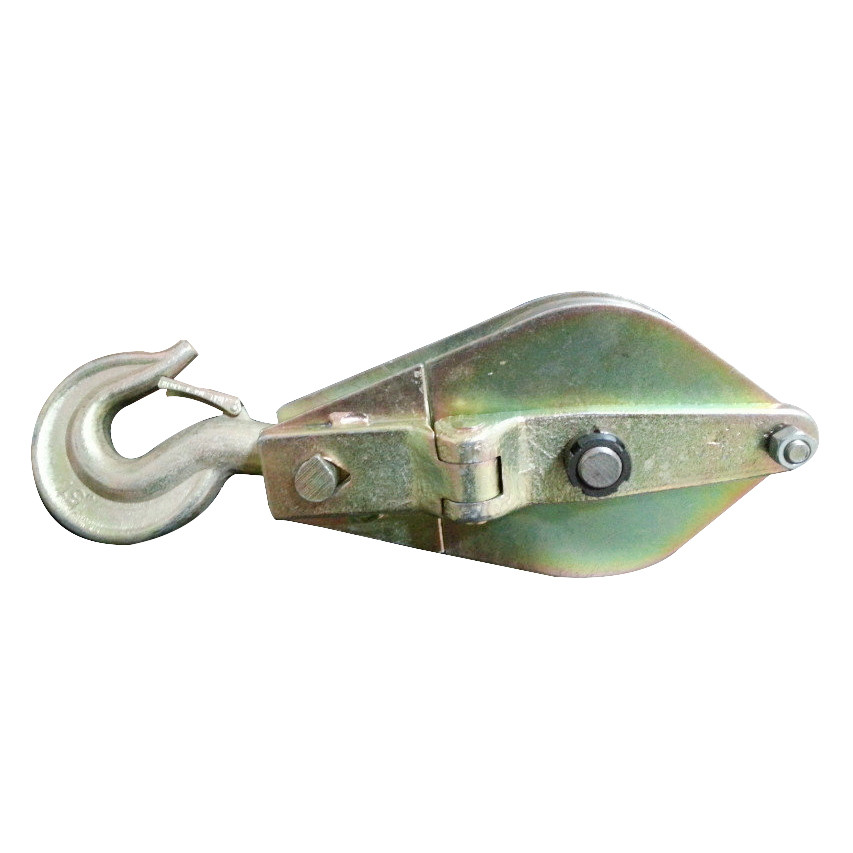

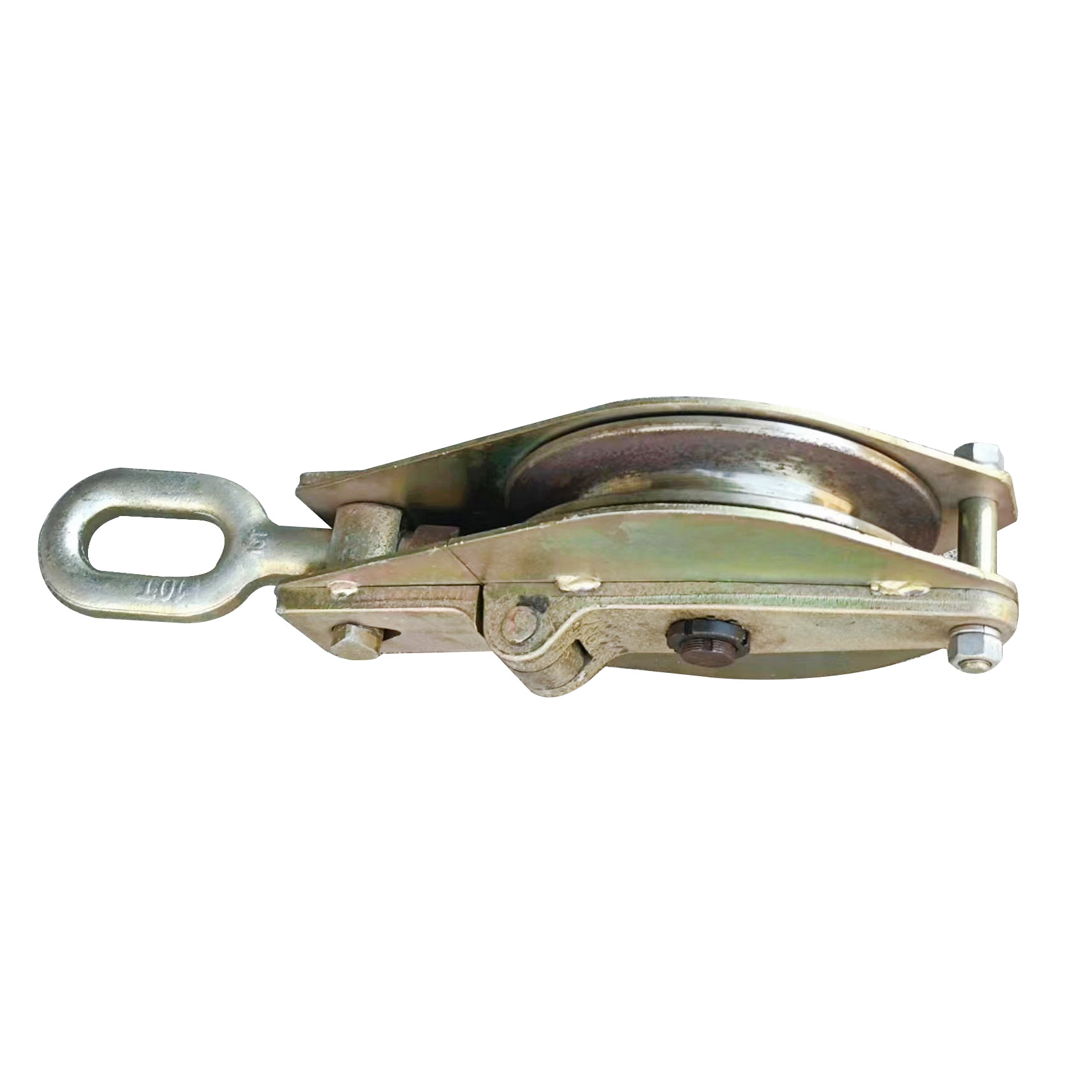

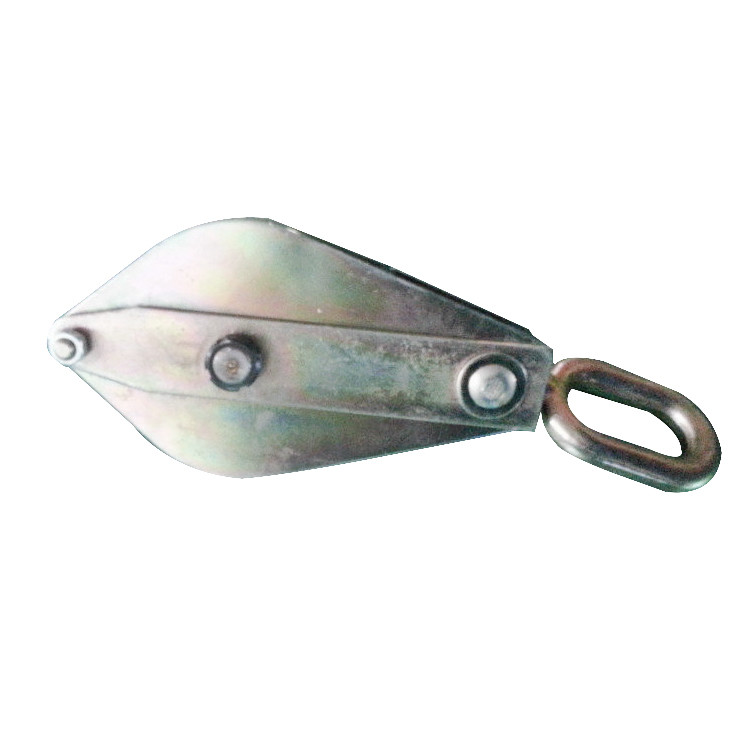

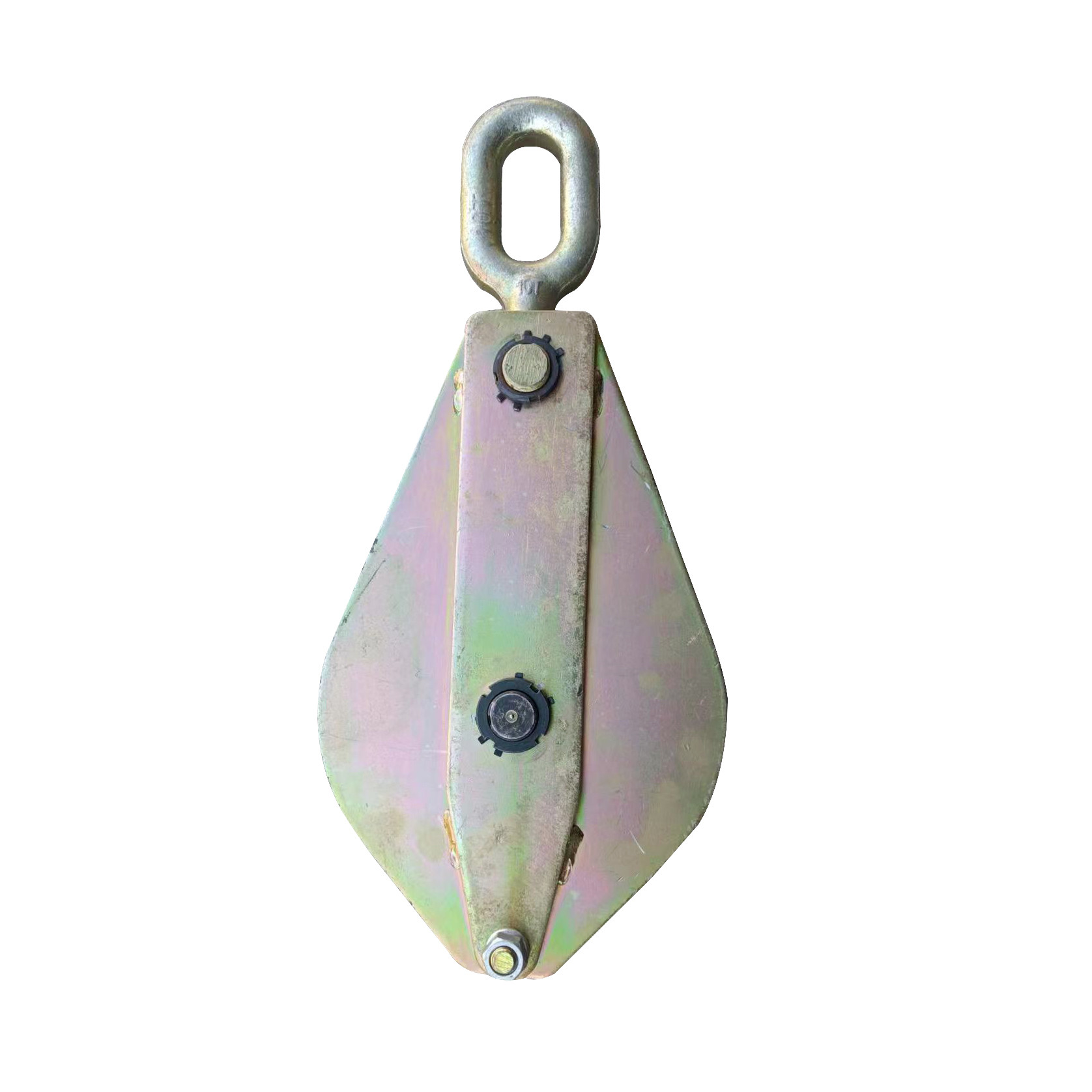

Iron Hoisting Tackle

In the construction industry, it is a powerful assistant in building high-rise buildings. When it is necessary to lift building materials at high altitudes, iron hoisting rigging can withstand huge weights. For example, heavy steel beams, tons of precast concrete blocks, etc. can be safely lifted and accurately placed in the predetermined position through it. Its reliability and strength ensure the efficient transportation of large materials during the construction process and speed up the construction progress.

In the field of port logistics, Iron Hoisting Tackle is also crucial. A large number of containers, bulk cargoes and other goods cannot be lifted without it. Whether on the gantry crane at the container terminal or on the crane for loading and unloading cargo on bulk carriers, these iron hoisting rigging can steadily lift the cargo, ensure the smooth flow of cargo, and improve the cargo throughput efficiency of the port.

Product code	Model	Rated load	Number rounds	Application of wire rope diameter	Weight
0376	LZH5-1K	5KN	1	5.7mm	1.2kg
0377	LZH10-1K	10KN	1	7.7mm	1.5kg
0378	LZH10-2	10KN	2	5.7mm	1.75kg
0379	LZH10-3	10KN	3	5.7mm	2kg
0380	LZH15-2	15KN	2	7.7mm	2kg
0381	LZH15-3	15KN	3	12.5mm	2.75kg
0382	LZH20-1K	20KN	1	11mm	2kg
0383	LZH20-2	20KN	2	7.7mm	2.5kg
0384	LZH20-3	20KN	3	7.7mm	2.75kg
0385	LZH30-1K	30KN	1	12.5mm	3.5kg
0386	LZH30-2	30KN	2	11mm	4kg
0387	LZH30-3	30KN	3	7.7mm	4.2kg
0388	LZH50-1K	50KN	1	15.5mm	4kg
0389	LZH50-2	50KN	2	12.5mm	4.5kg
0390	LZH50-3	50KN	3	11mm	4.75kg
0391	LZH80-1K	80KN	1	18.5mm	6kg
0392	LZH80-2	80KN	2	15.5mm	6.5kg
0393	LZH80-3	80KN	3	15.5mm	6.75kg
